Propeller Testing Station

Easy to Use

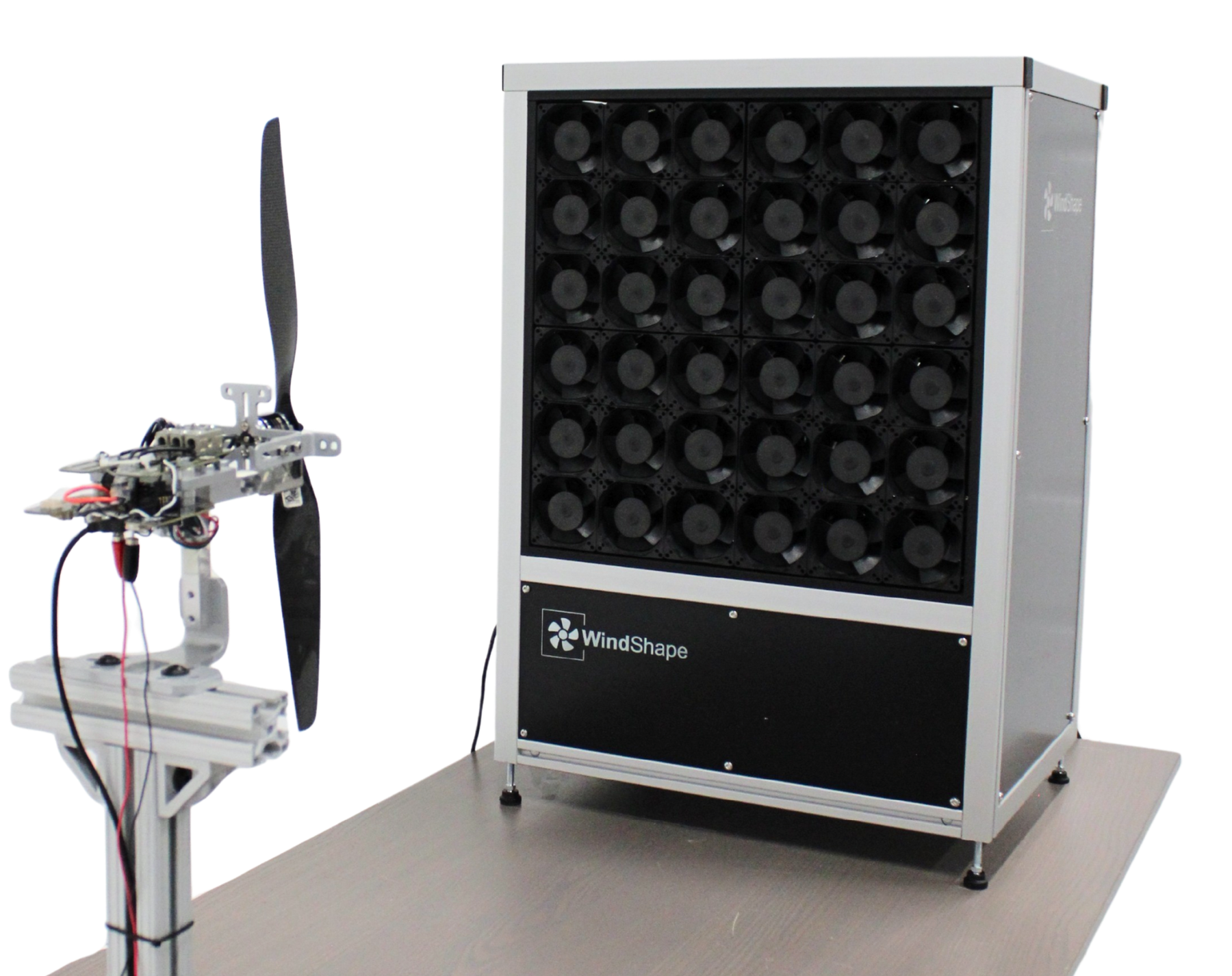

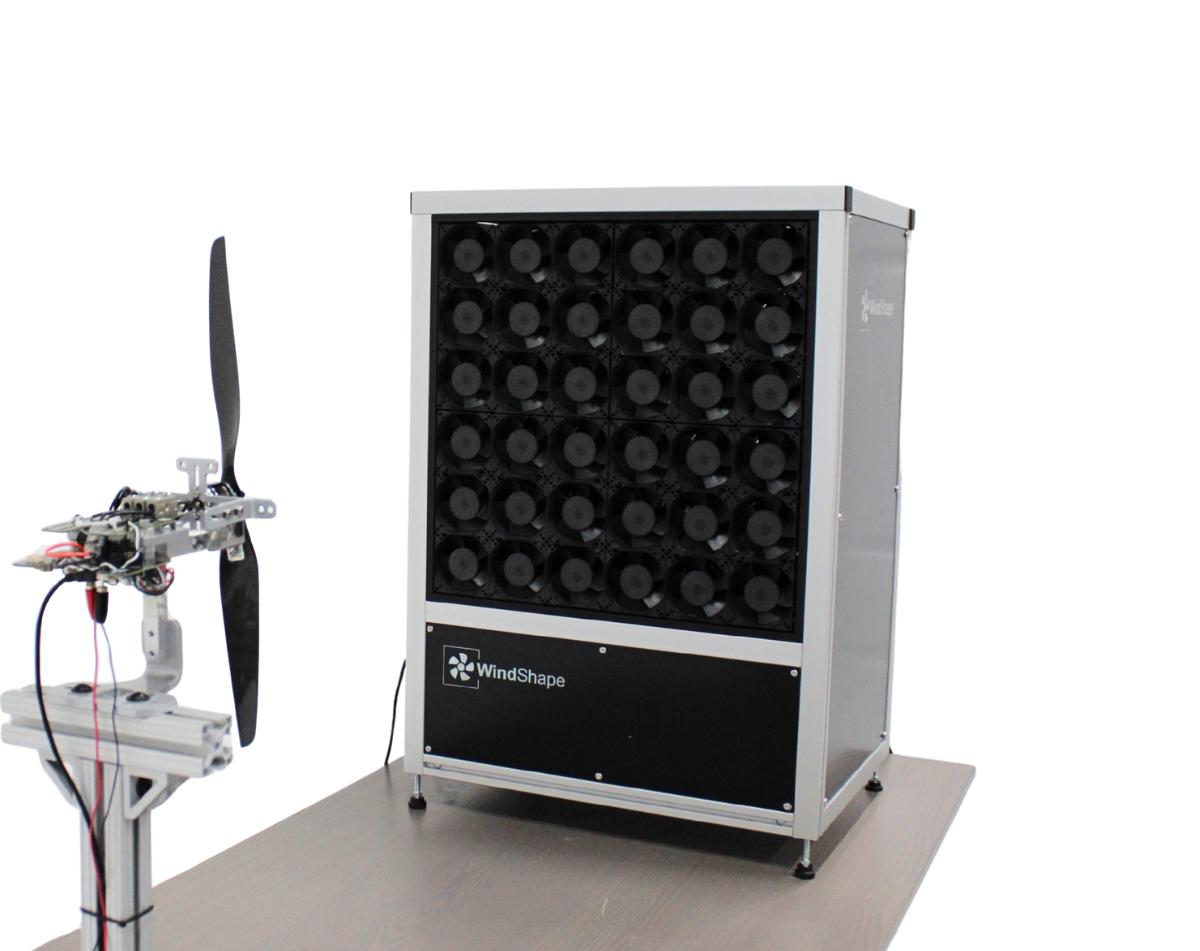

Propeller Testing Station

Integrated propeller test stand and wind tunnel

Get a Quote

The Kit

What's Included

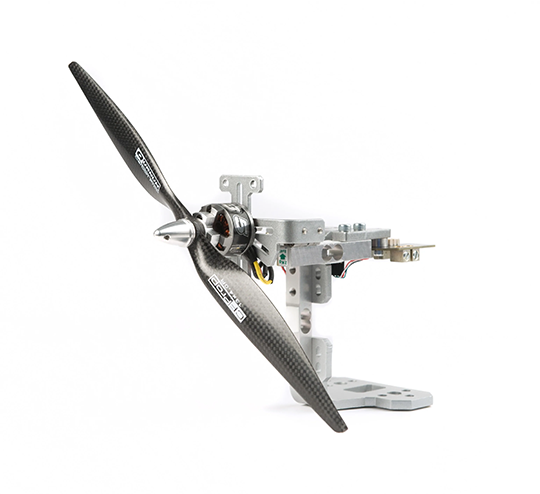

Propeller Test Stand

Propeller Test Stand

Choose any Flight Stand to match your motor and propeller testing requirements. Measure thrust, torque, RPM, voltage and current with synchronized data acquisition.

Maximum capabilities shown below are for the Flight Stand 500. Specifications depend on the Flight Stand selected.

Max thrust

500 kgf

Max torque

1,500 Nm

Max voltage

1,000 V

Max current

500 A

Sampling rate

1,000 Hz

Max optical RPM (two-blade propeller)

16,800 RPM

Download datasheet
WindShaper

WindShaper

Pair your Flight Stand with any WindShaper. Choose a modular wind wall size and shape for your propeller and create steady or time-varying wind profiles with independently controlled wind pixels.

Standard wind wall specifications are shown below. Overall dimensions, flow rate and power requirements depend on the configuration selected.

Flow speed (without convergent)

2–20 m/s

Ramp-up flow acceleration

4 m/s²

Ramp-down flow deceleration

3.6 m/s²

Wind pixels per module

9

Fans per module

18 (2 per wind pixel)

Dynamic control time step

0.1 s

Download datasheet

Custom 3D

Wind Profiles

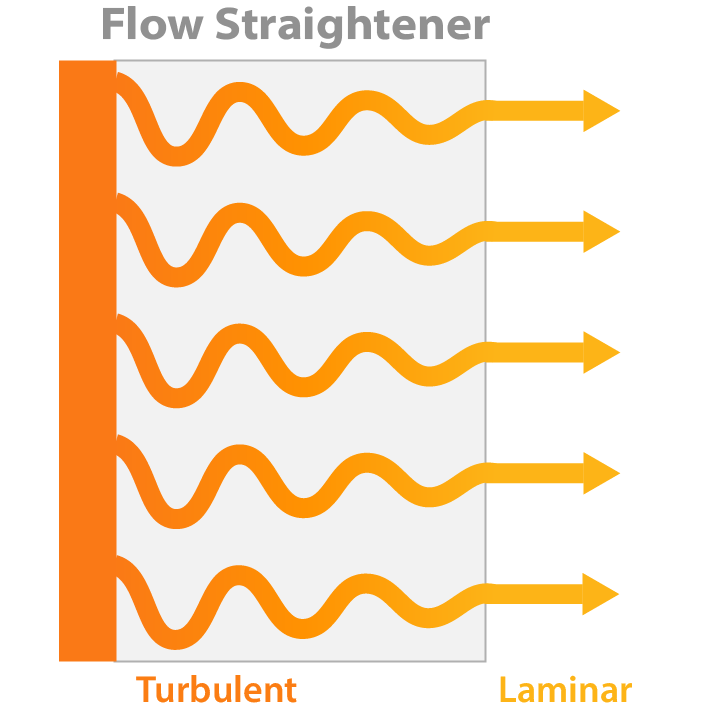

Steady Laminar Flow

Steady Laminar Flow

Mimics the constant flow you would see in a traditional wind tunnel, which is great for evaluating aerodynamics.

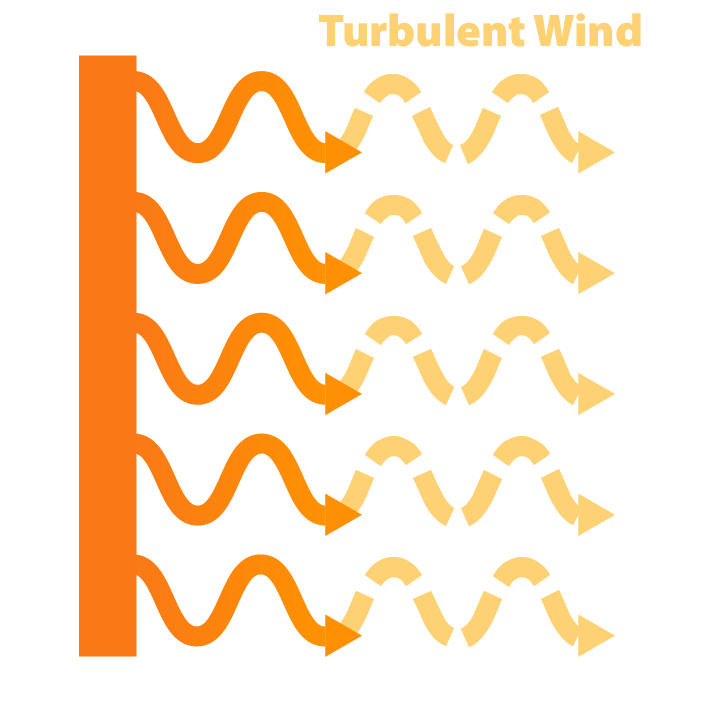

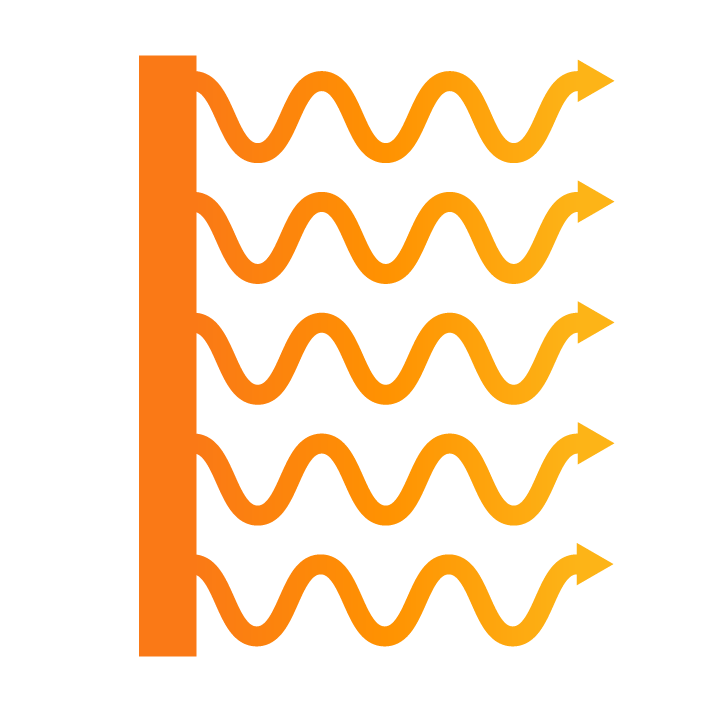

Turbulent Flow

Turbulent Flow

Ideal for simulating the conditions an aircraft is likely to face in its work environment due to weather and topology.

Shear Flow

Shear Flow

Describes a wind profile where adjacent layers of fluids move parallel to each other at different speeds.

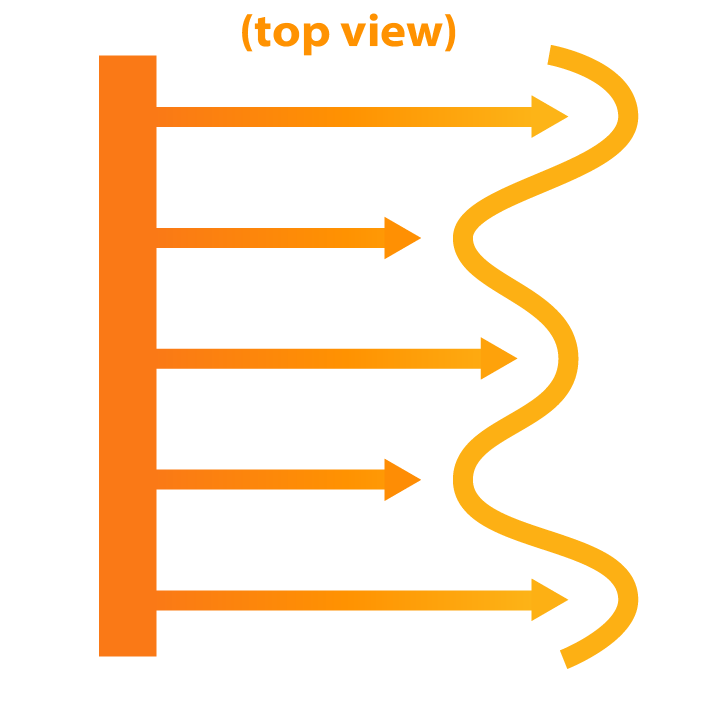

Time Variable Flow

Time Variable Flow

Ideal for simulating the conditions an aircraft is likely to face in its work environment due to weather and topology.

Wind Gust

Wind Gust

Sudden changes in wind speed can be challenging for an aircraft to navigate. Gusts can be simulated by rapidly fluctuating the wind speed.

Customer stories

Reviews

Our customers share how our tools helped them build drones and achieve performance goals

"The system has been working well for us. Most recently we used it for static testing of a powered glider platform to supply incoming airflow over the fuselage to measure the glider's power draw and heat buildup throughout the fuselage with the incoming flow, simulating a slow speed flight."
Chris White
Chris White

Research Engineer

Raspet Flight Research Laboratory

Mississippi State University

"The Tyto thrust stand and 2×2 WindShaper have been game-changers in our propeller development. For a windmilling drone like ours, custom propellers are critical— and Tyto’s tools have helped us uncover performance gains we’d never see in static tests."
Will Hasting, PE
Will Hasting, PE

CEO

Angel Aerial Systems

“The WindShaper has been an invaluable tool in our research to better understand the interactions between flow and drones in windy and gusty conditions! Using the WindShaper and bubble tracking, we were able to precisely characterize how LaDrone reacts to wind gusts! ”
Dr. Nate Simon
Dr. Nate Simon

Intelligent Robot Motion Lab

Department of Mechanical & Aerospace Engineering

Princeton University

Applications

Unlock Key Performance Data

Motor Performance Mapping

Motor Performance Mapping

Propeller Efficiency vs. Wind Speed

Propeller Efficiency vs. Wind Speed

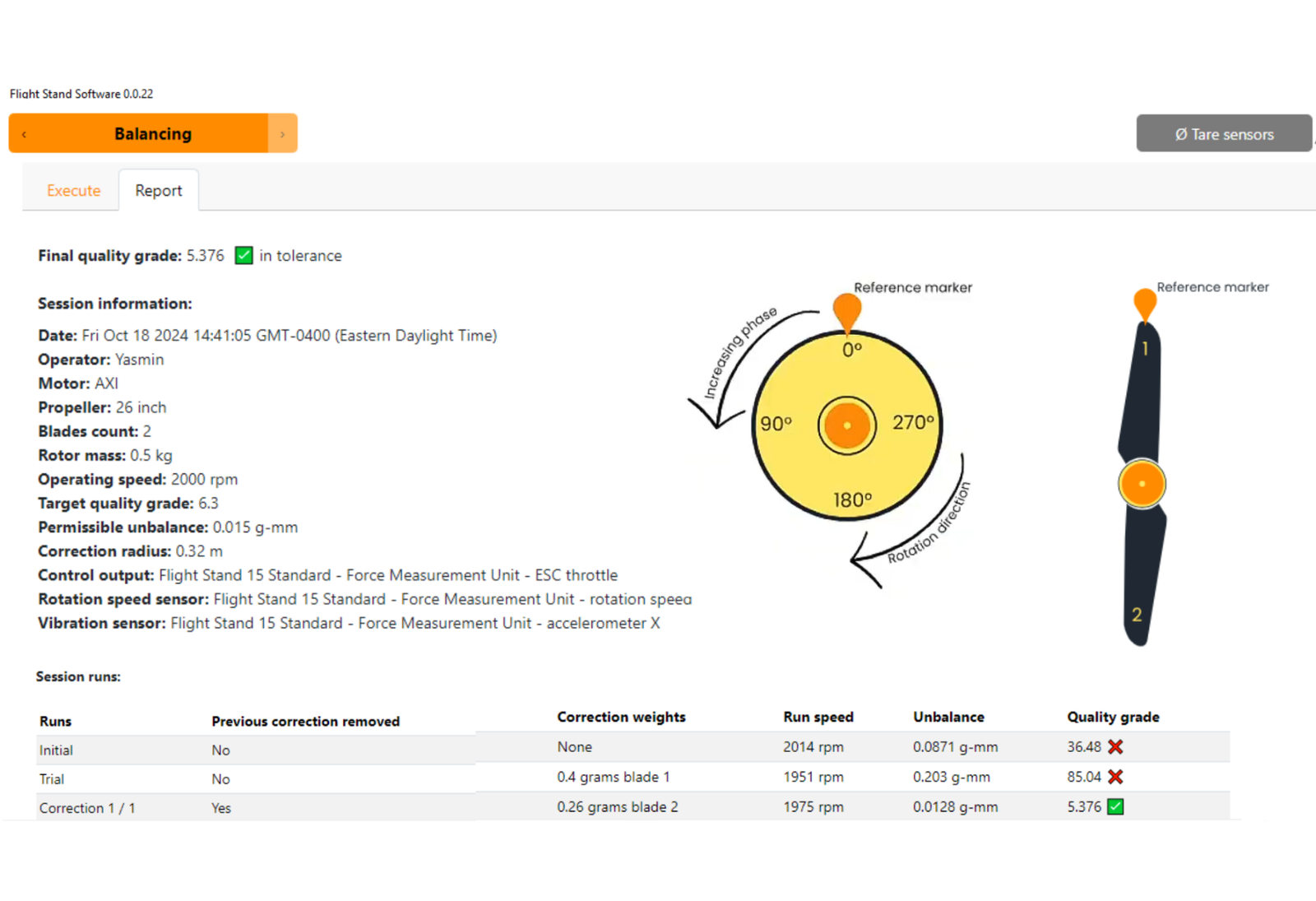

Dynamic Propeller Balancing

Dynamic Propeller Balancing

Thrust to Power Ratios

Thrust to Power Ratios

Fast Fourier Transformation

Fast Fourier Transformation
