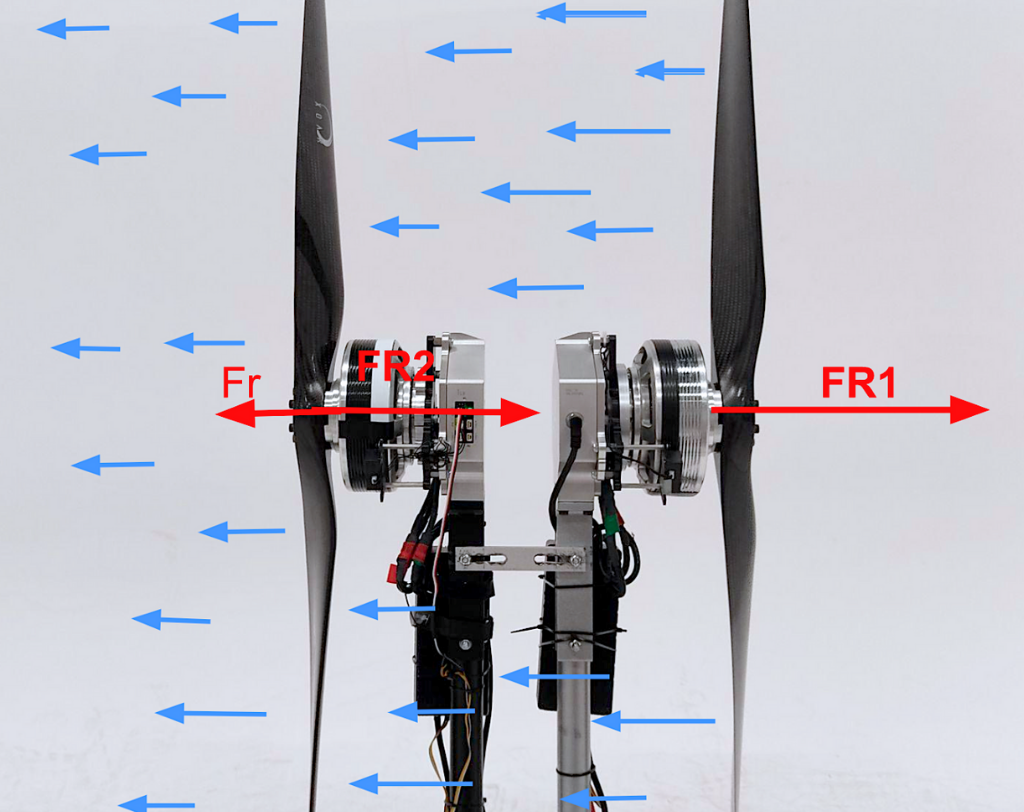

dep test stand

DEP Testing

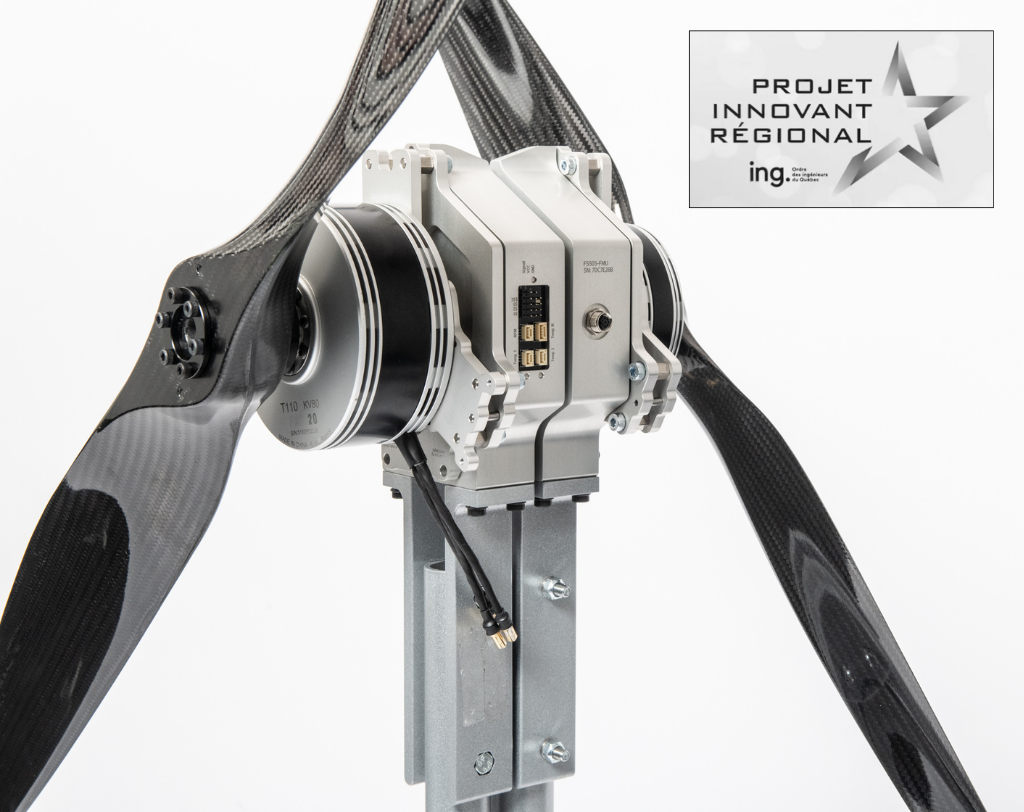

Flight Stand 500

flight stand thrust stand 500 kgf

Flight Stand 500

Flight Stand 150

flight stand 150 thrust stand

Flight Stand 150

Flight Stand 50

flight stand 50 thrust stand

Flight Stand 50

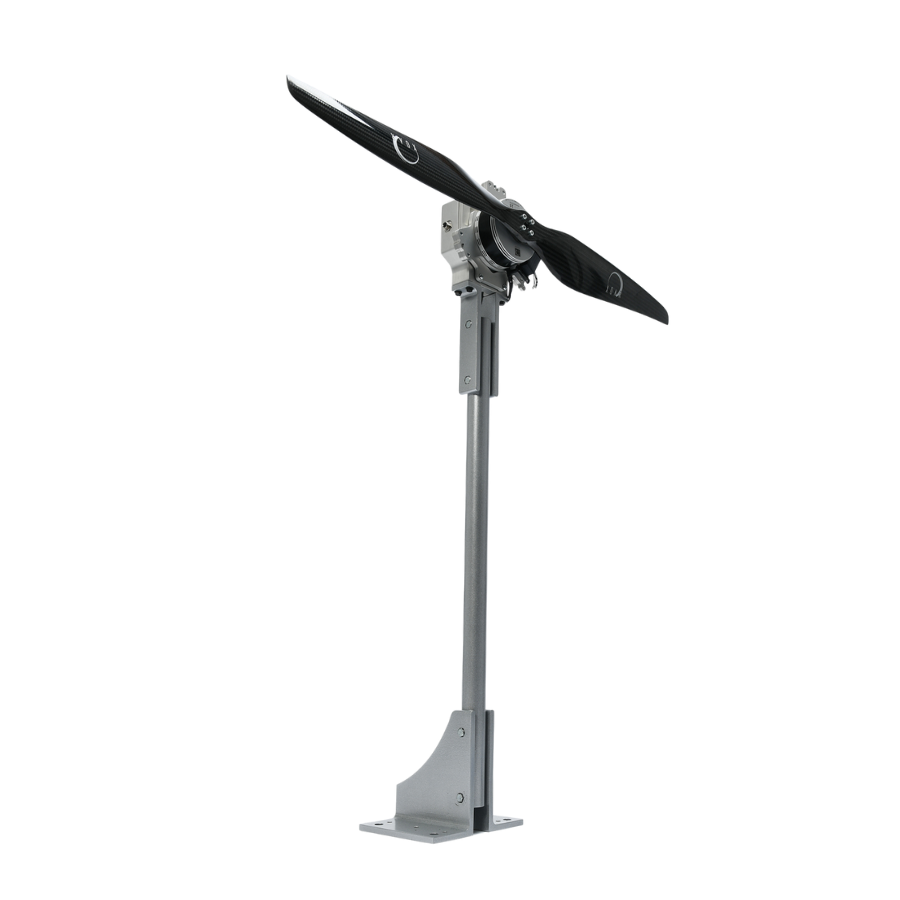

Flight Stand 15

thrust stand 15 kgf

Flight Stand 15

Series 1585

thrust stand 5 kgf

Series 1585

Windshapers

windshaper

Windshapers

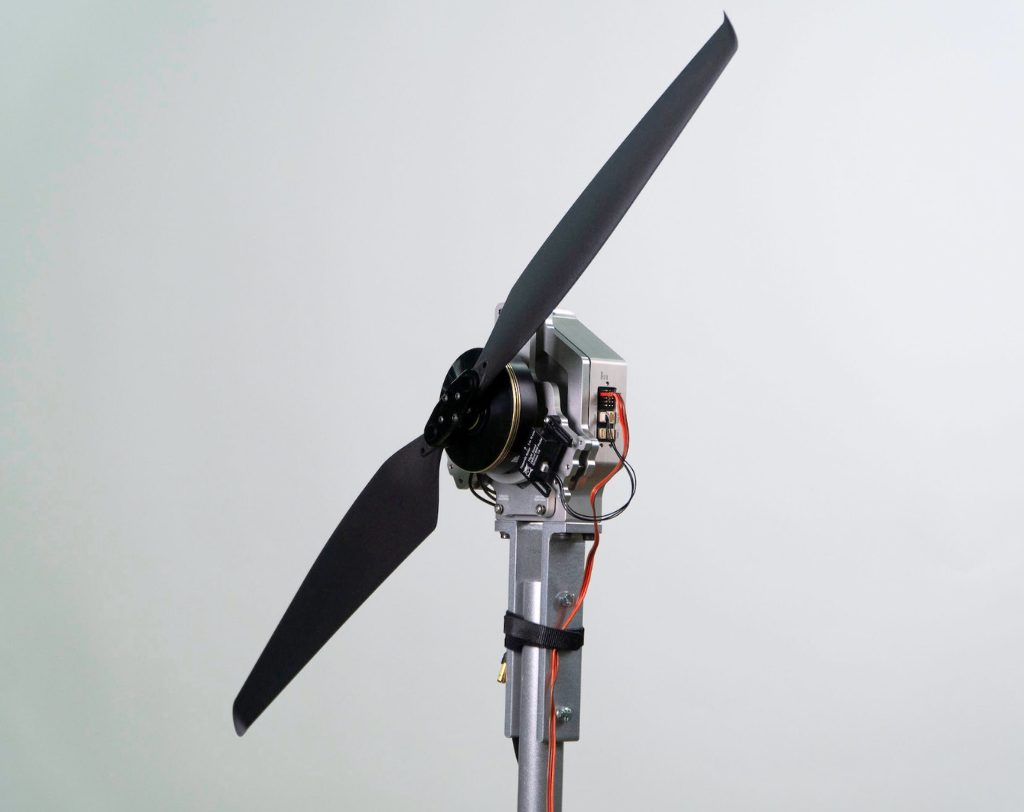

Prop Testing Station

propeller test rig

Prop Testing Station

1000 Hz sampling rate

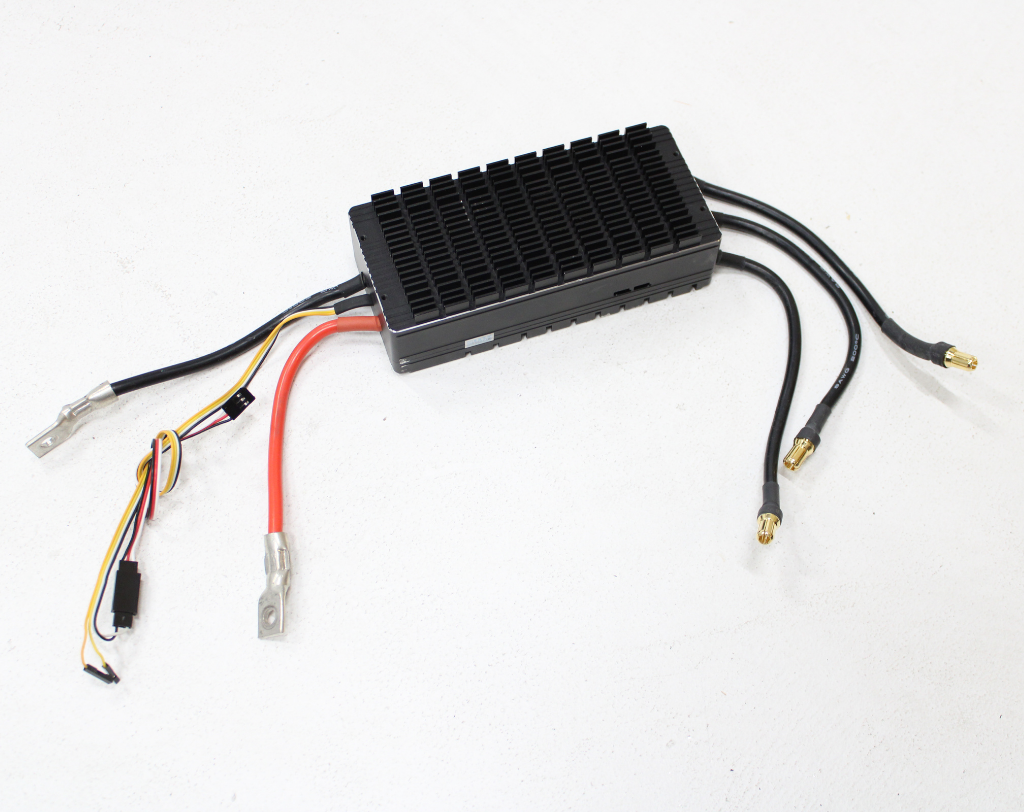

Measure vibration, evaluate ESC responsiveness, and characterize the dynamic response of motors and propellers

ASTM calibrated load cell

We adhere to ASTM E74/E2428 standards to provide the most precise measurement on the market (+/-0.5% of the measured value)

I/O API and Python control

I/O API to read and control extra sensors, CAN ESCs, and more. Fully control the software using Python.

Technical Specs

Standard
Pro
Thrust
500 N
500 N
Torque
30 Nm
30 Nm
Rotation speed
30,000 RPM
30,000 RPM
Voltage
180 V
180 A
Current
300 A
300 A
Sampling rate
100 Hz
1,000 Hz
Calibration
Internal standard
ASTM standard
Analog inputs
No
Yes

Download the Datasheet

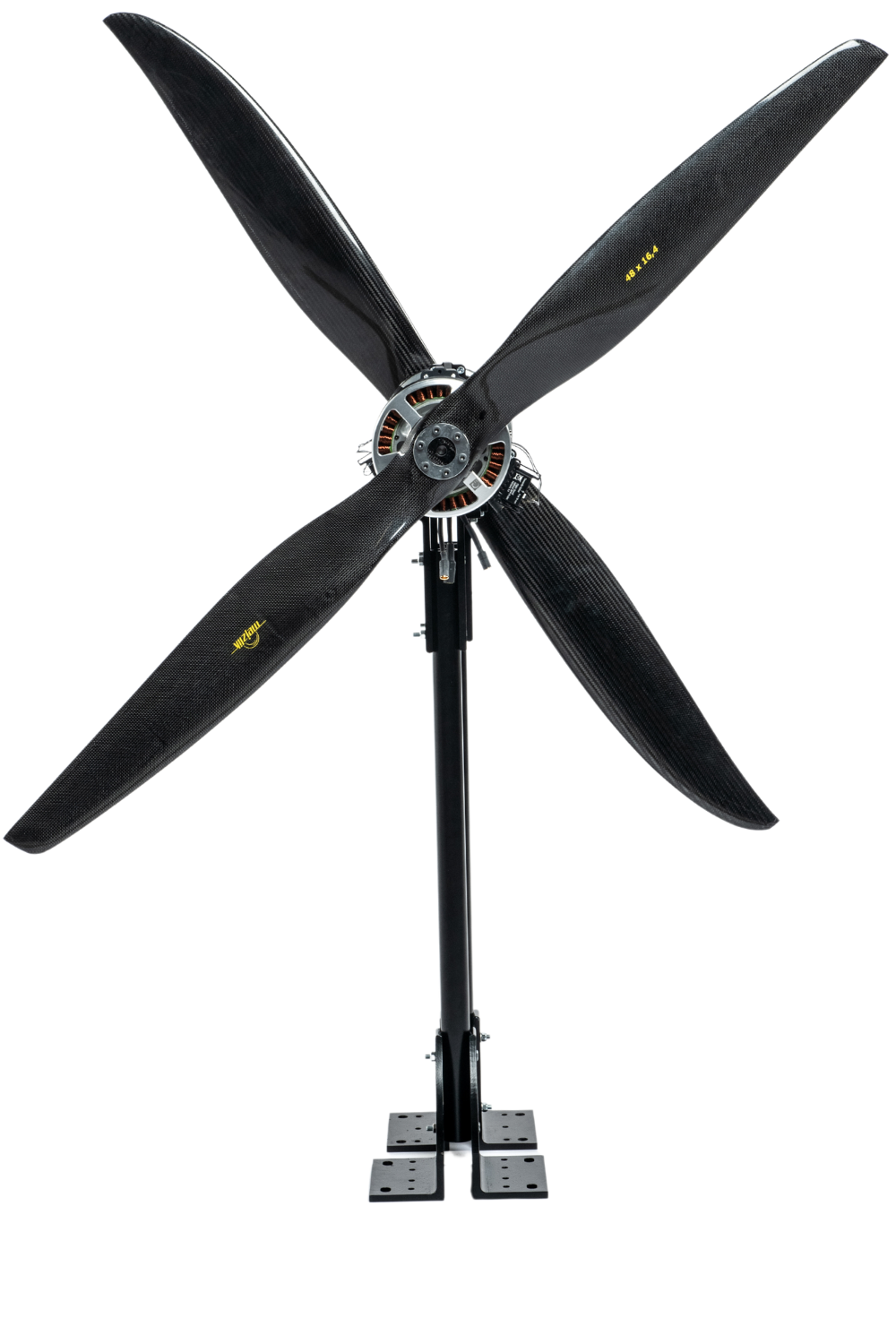

Test in Several Different Configurations

Compare motor-propeller combinations in single motor or dual motor configurations

files/different_configurations_flight_stand_50.png

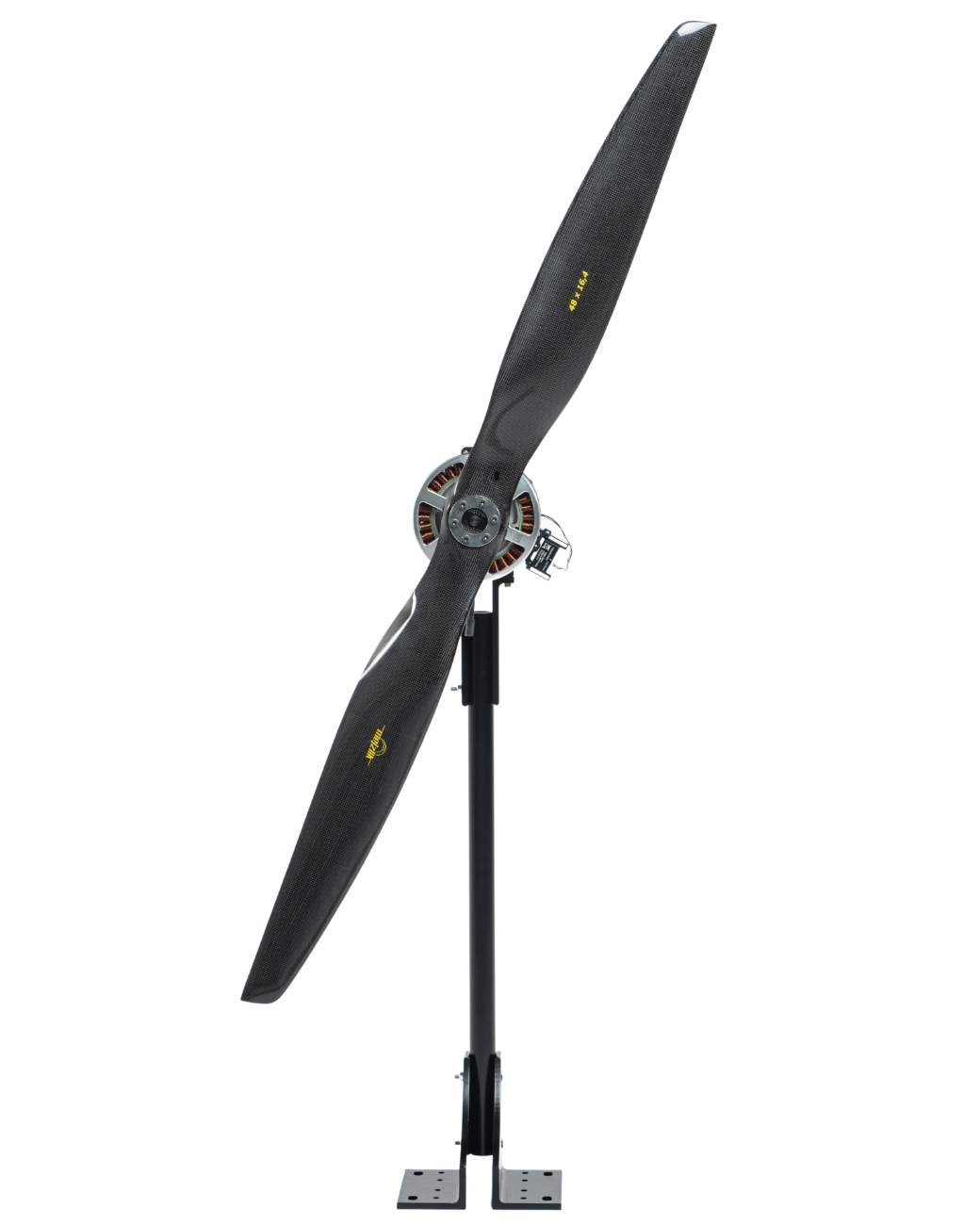

Single Motor

files/different_configurations_flight_stand_50_1.png

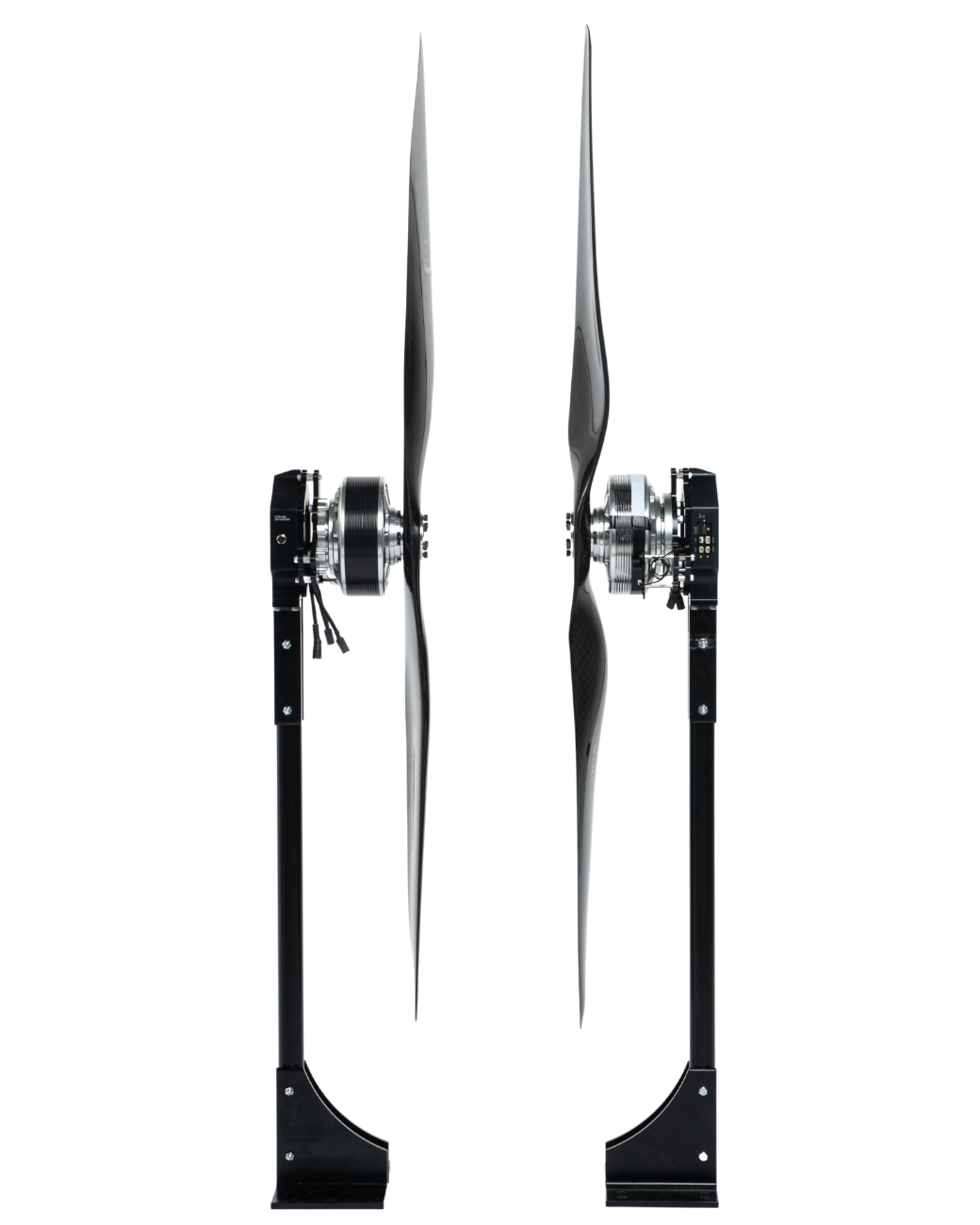

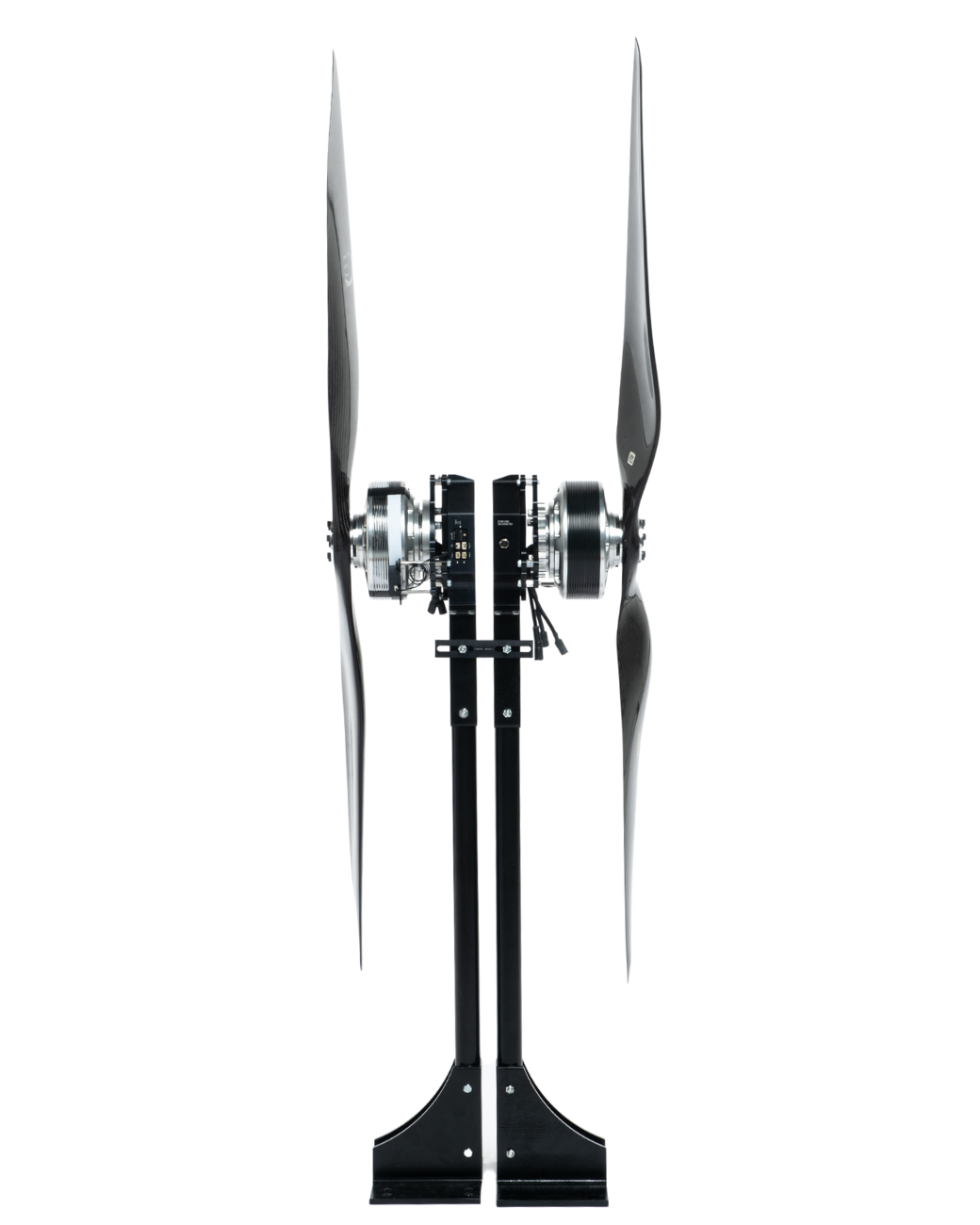

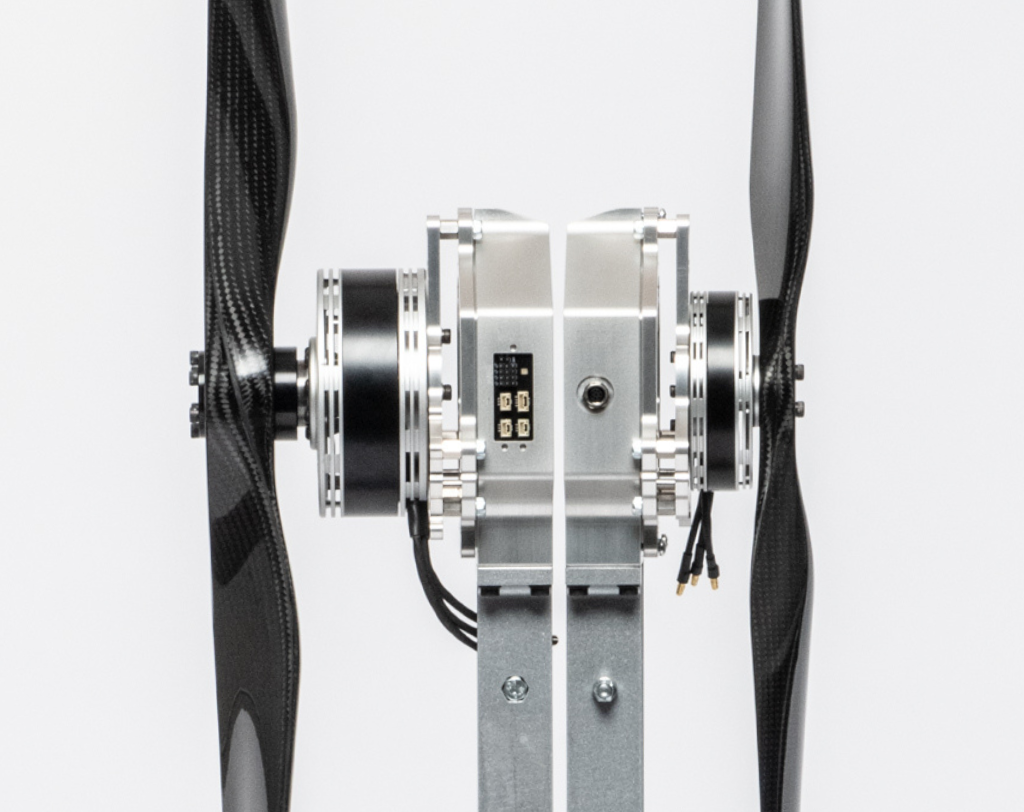

Back-to-back dual motors

files/different_configurations_flight_stand_50_2.png

Front-to-front dual motors

files/different_configurations_flight_stand_50_3.png

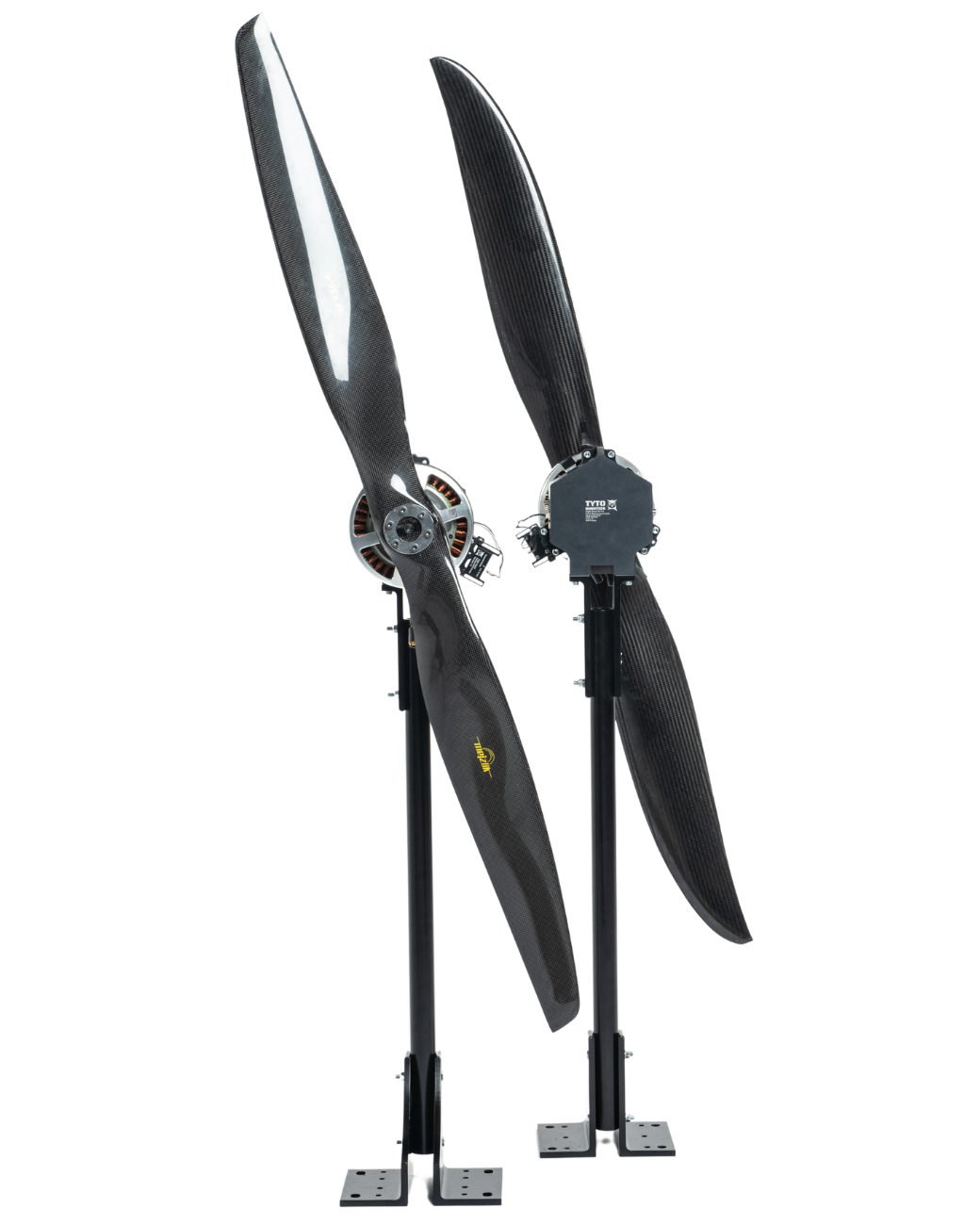

Offset dual motors

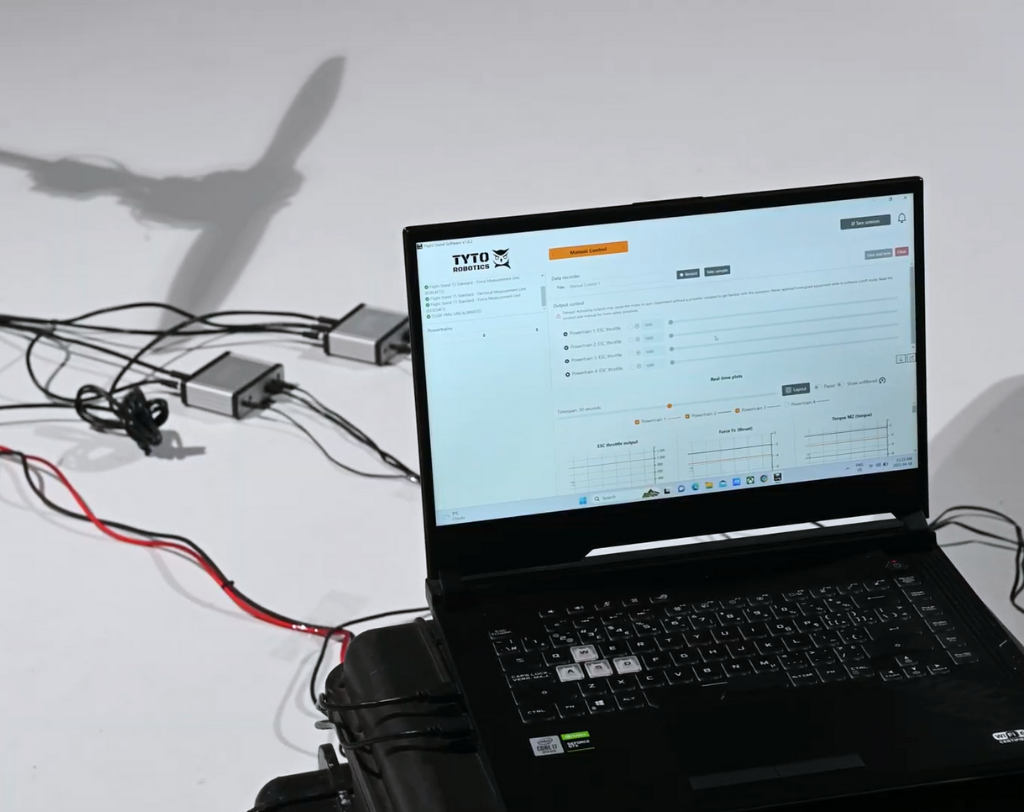

Flight Stand Software

Dynamic testing with manual or automatic control

Included with your Flight Stand

flight stand thrust stand software

Features
1,000 Hz sampling rate
Real-time testing
Manual and automated control
Python API
Powertrain mapping
Automation wizard
Multi-powertrain testing (DEP)

Acquired Data
Thrust and torque
Voltage and current
RPM
Mechanical and electrical power
Propeller efficiency
Motor efficiency
Overall System efficiency

Automated Tests
Flight replay test
Endurance test
Step test
Ramp test
Constant thrust testing
90% Settling Time Test
+ More

Discover the Software

What's in the Box

The Flight Stand comes with everything you need for your tests:

files/In-the-box-1.png

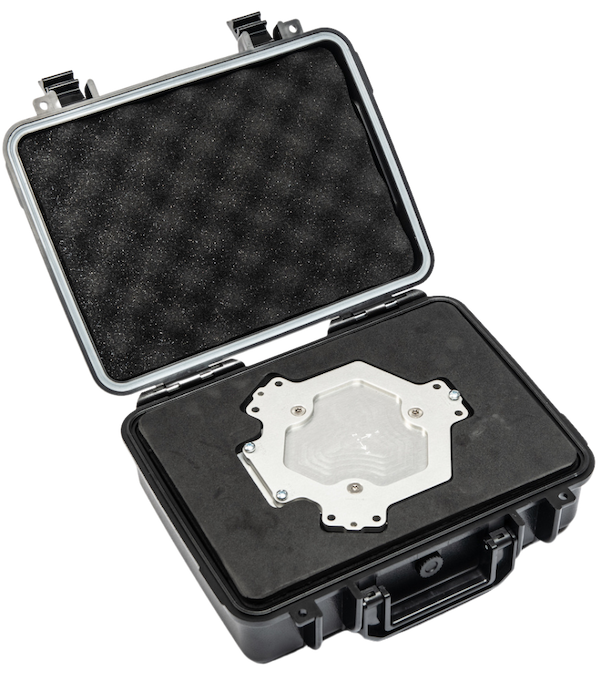

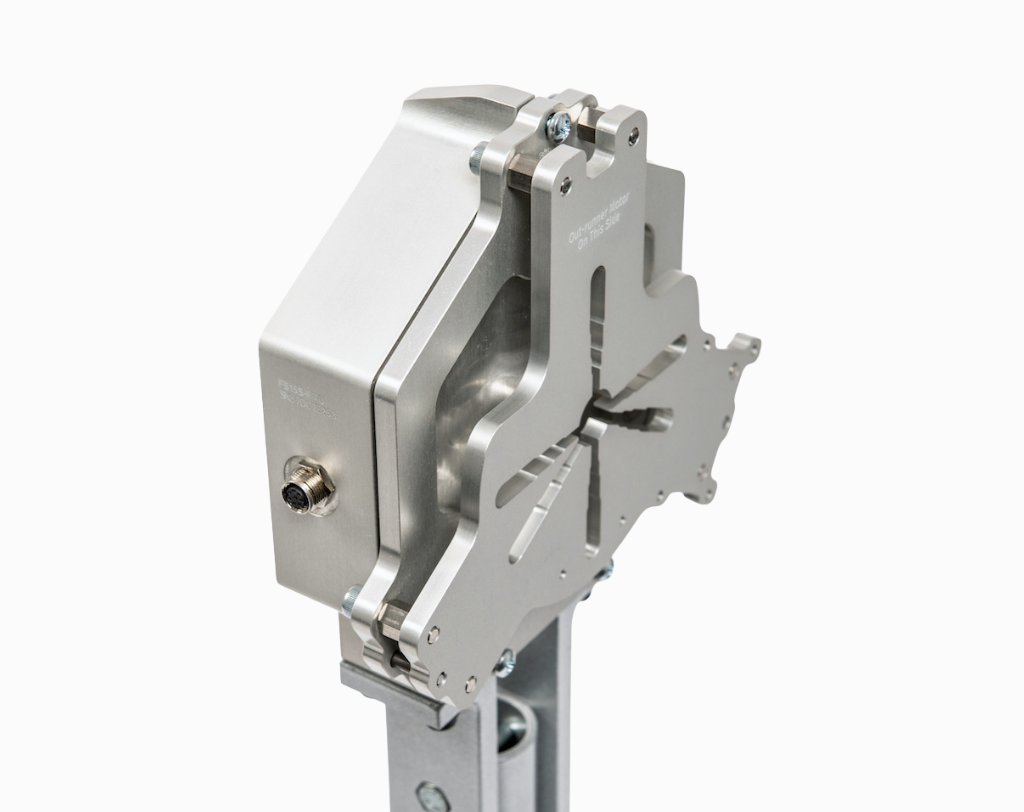

Force Measurement Unit

files/box-2.png

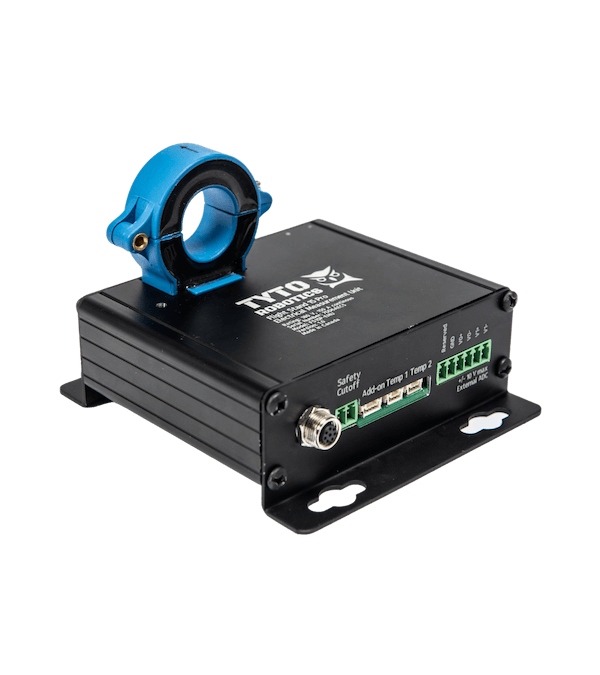

Electrical Measurement Unit

files/thrust_stand_motor_mounting.png

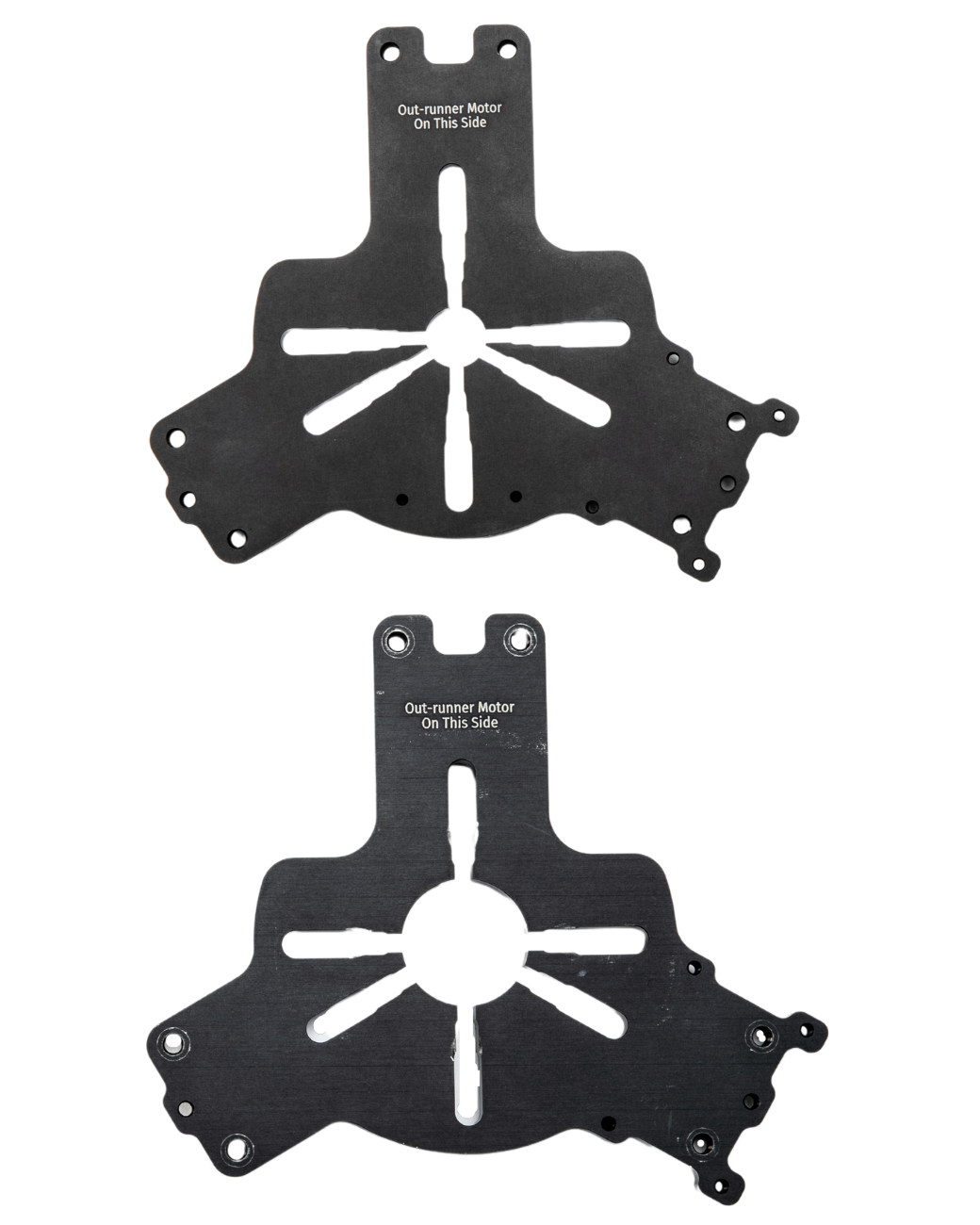

Motor Mounting Plates (x2)

files/box-4.png

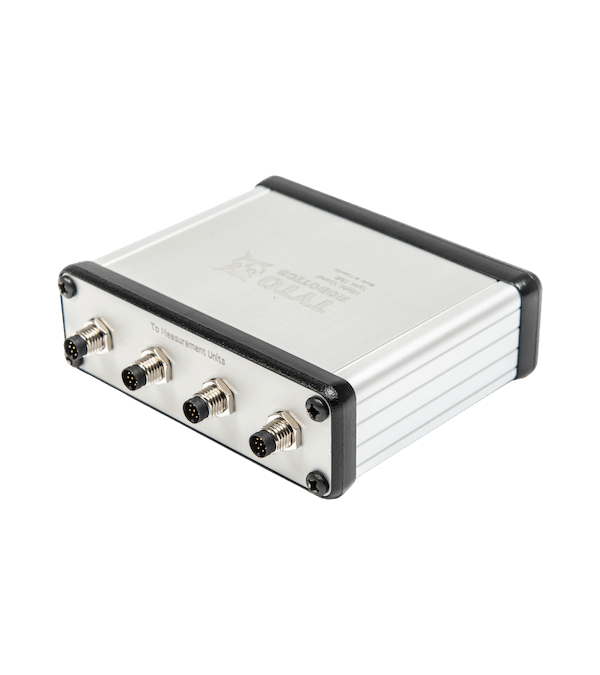

Sync Hub

files/motor_rpm_sensor.png

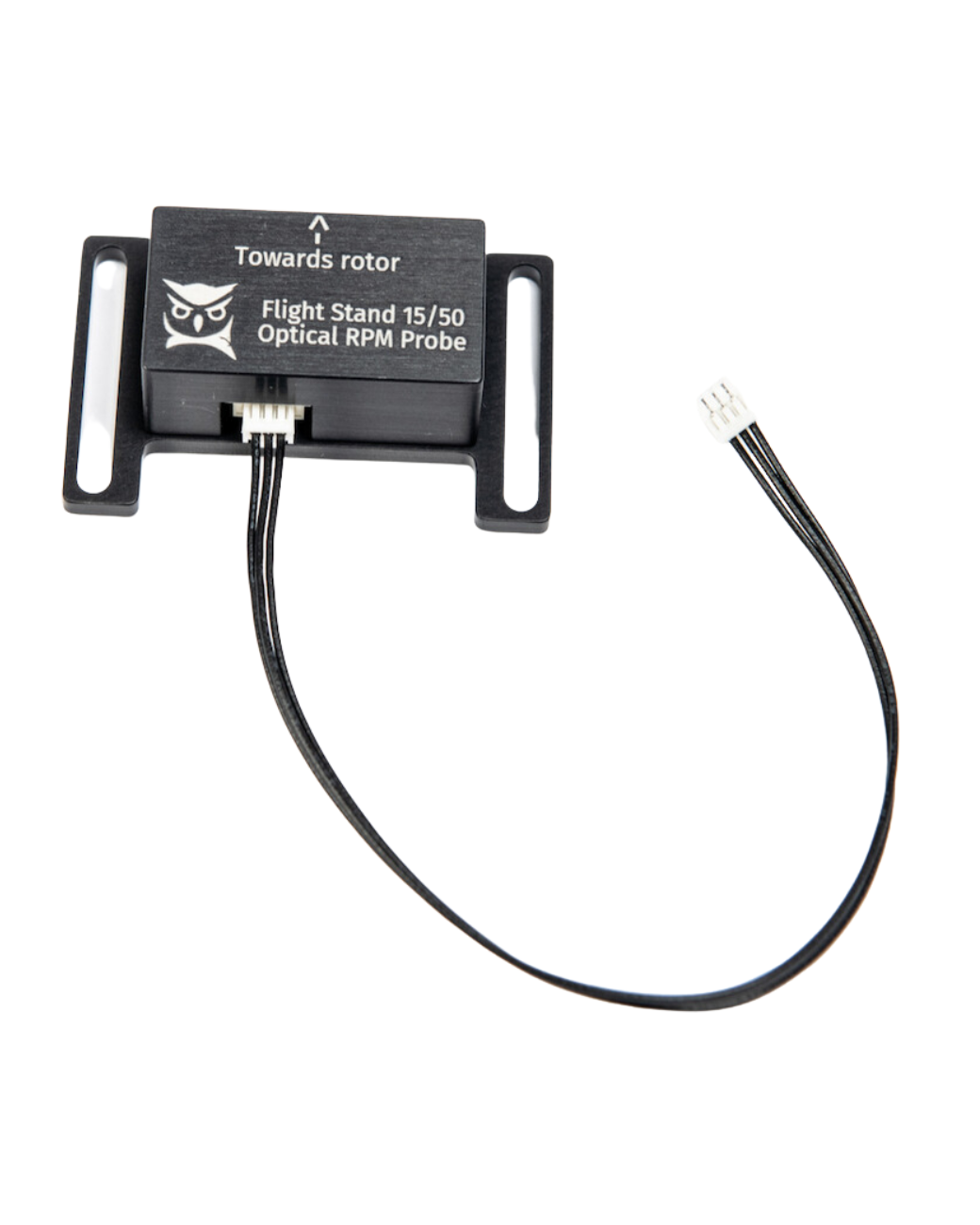

Optical RPM Probe

files/box-6.png

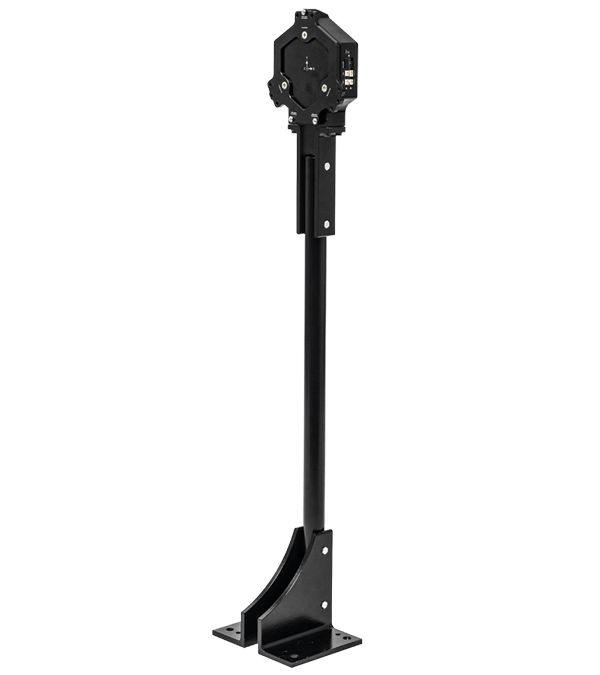

Tubular Structure

files/flight_stand_temperature_probe_cef57744-c849-4e4b-b1a8-c3e607470cb6.png

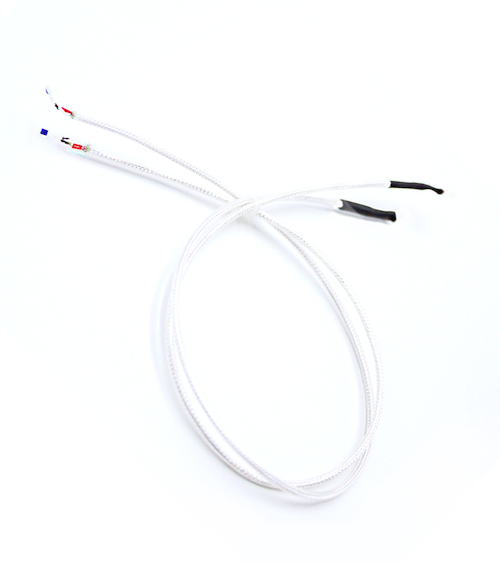

Temperature Probes (x2)

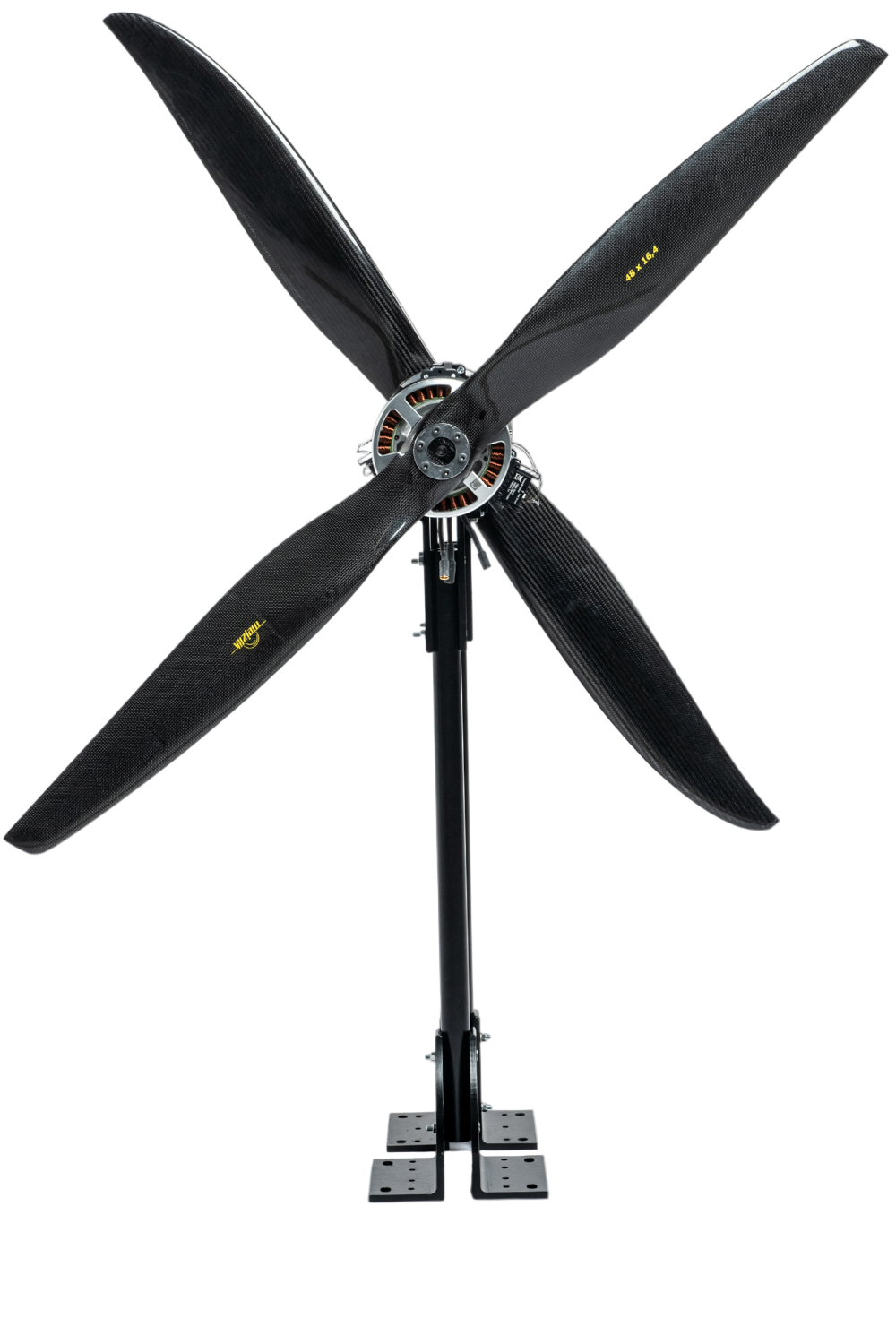

thrust stand flight stand 50

Get a Quote

for the Flight Stand 50
