Electric Motor Test Stands

Improve electric motor efficiency and general performance

Get a Quote

Measure Electric Motor Torque

Validate the performance of high-caliber electric motors

Our electric motor test stands are made for motors from 5 A to 500 A and from 5 V to 100 V. Our range of stands supports all kinds of motor mounting points including very large electric motors up to 160 mm in diameter and up to 7 kg in weight.

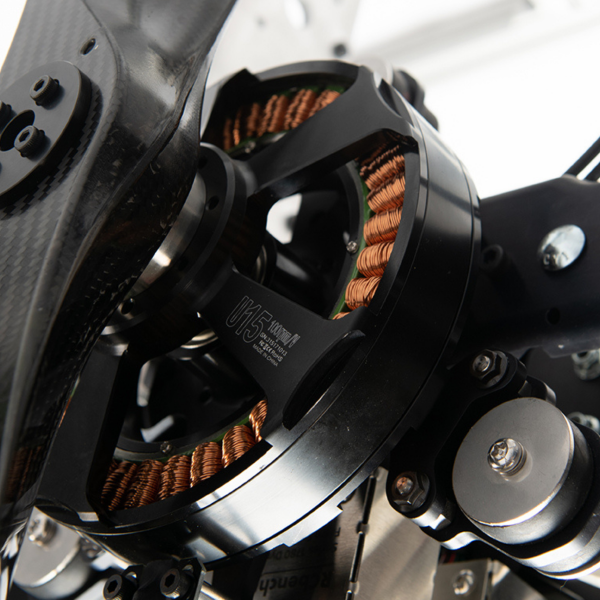

Close up on a brushless motor

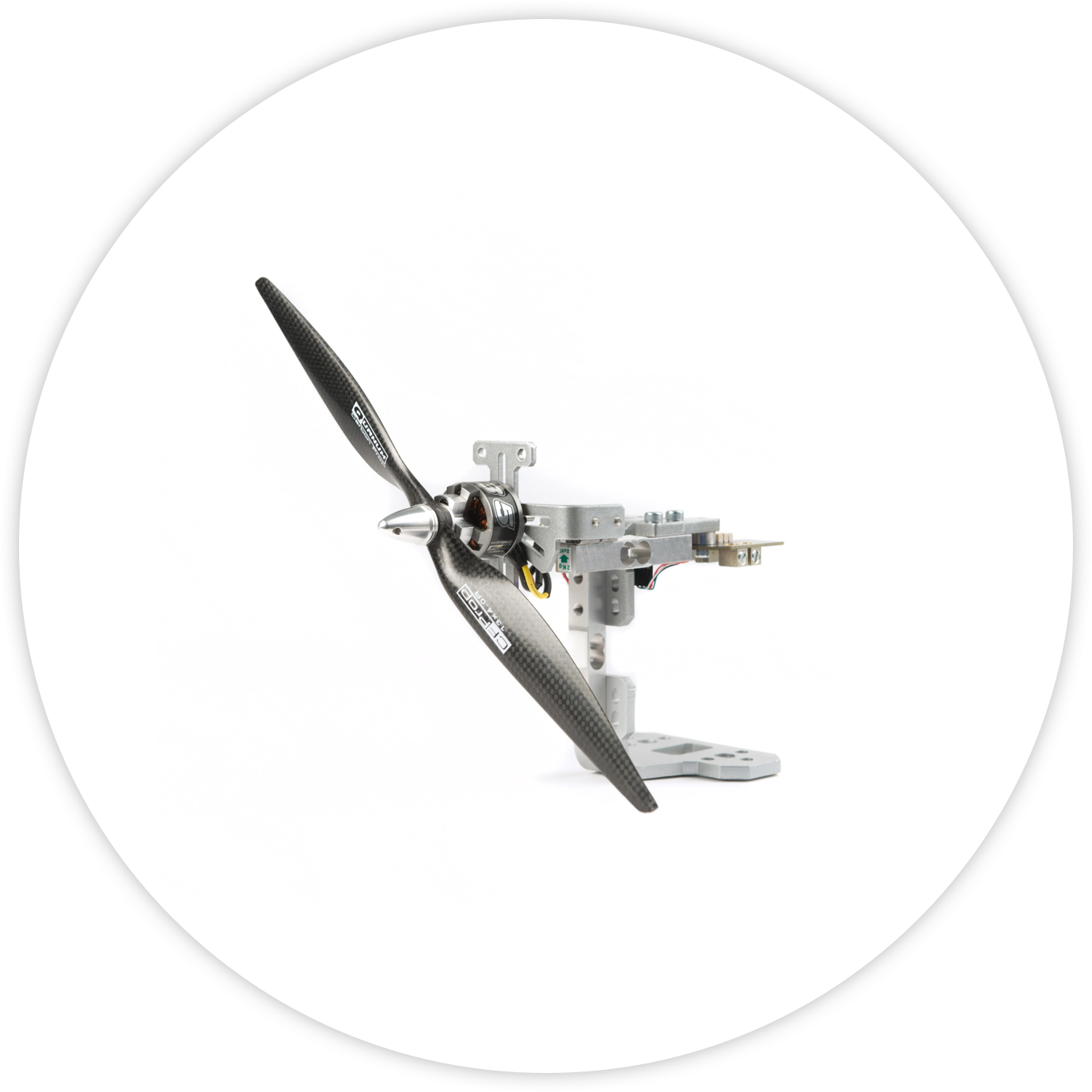

Small Brushless Motor Test Stand

Measure up to 5 kgf of thrust and 1.5 Nm of torque

The Series 1580 measures thrust, torque, voltage, and current and derives the efficiency of your motor.

It provides professional characterization and helps you to find the best motor for your project.

Order the Series 1580 for small motors

Large BLDC Motor Test Stand

Measure up to 75 kgf of thrust, 48 Nm Torque

The Series 1780 comes in three sizes: 25 kgf, 40 kgf, and 75 kgf. It provides accurate electrical and mechanical power data as well as motor efficiency.

You can test motors in different conditions and single or coaxial configurations to characterize their efficiency and improve performance.

Order the Series 1780 for large motors
Brushless motors of various sizes
Brushless motor hardware

Electric Motor Test Bench for Quality Control

Run brushless motor endurance tests

Quality control is crucial for reducing support costs and increasing client satisfaction. Our test stands can be used in electric motor production lines in order to run and automate quality control tests.

The software allows for the automation of testing processes for precision and repeatability. Example: Running simple pass-fail tests and endurance tests to verify bearing life times.

Discover the Software

Compare Electric Motor Performance

With our software and brushless motor database

Our software allows you to control your brushless motor test stand and record your data.

Our database contains performance data on hundreds of brushless motors, propellers, and ESCs.

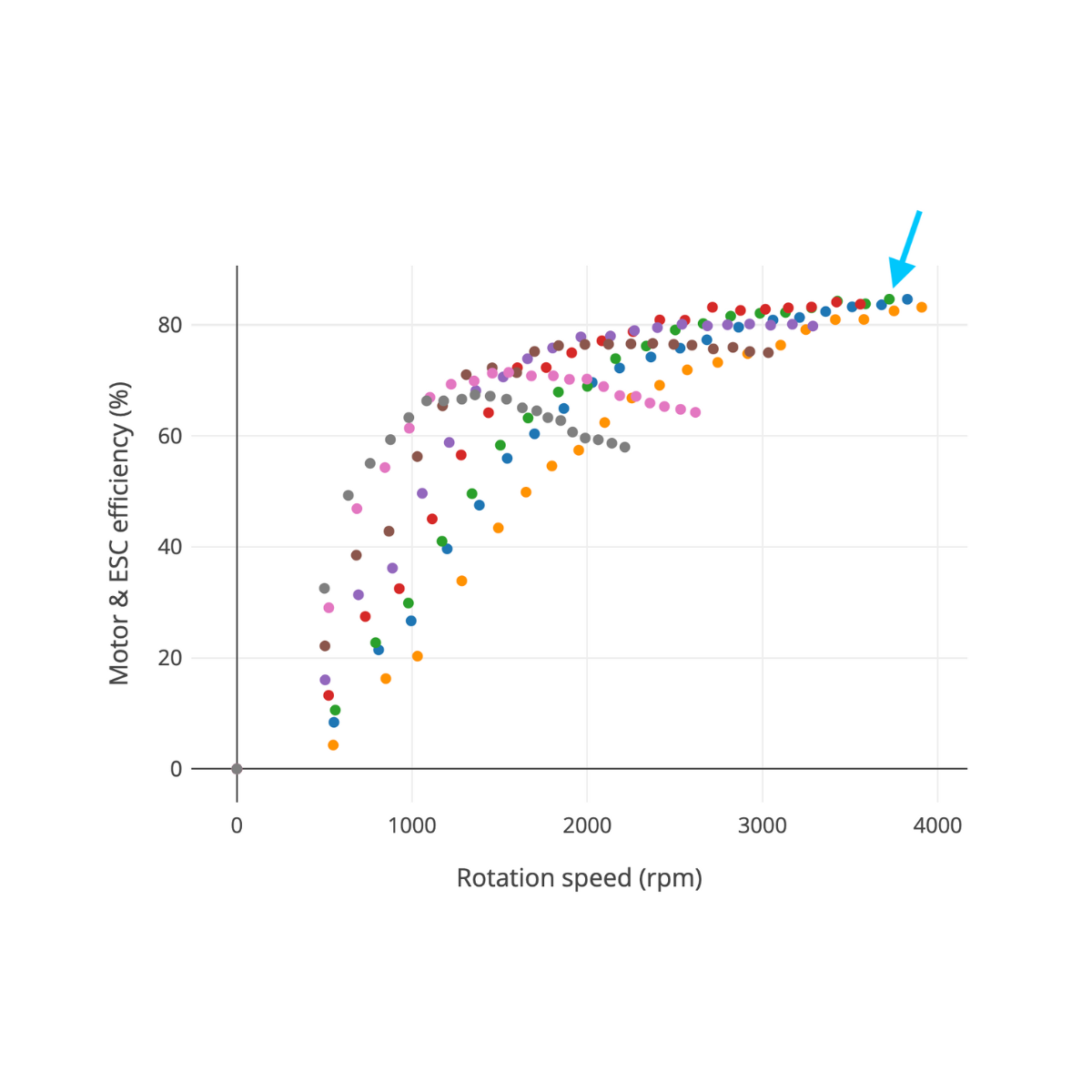

Brushless motor efficiency vs. rotation speed graph

All-Inclusive Solution for Brushless Motor Testing

Increase Brushless Motor Efficiency

Series 1580 drone load measurement unit

Study performance and determine optimal operating conditions

Coaxial Motor Testing in Several Configurations

coaxial motor test stand

Test front-to-front, back-to-back or offset motors

Measure Motor Torque and Thrust

DAQ system and electronics board

Our load cells measure up to 48 Nm of torque and 75 kgf of thrust

Motor Load & Performance Calculation

Software logo

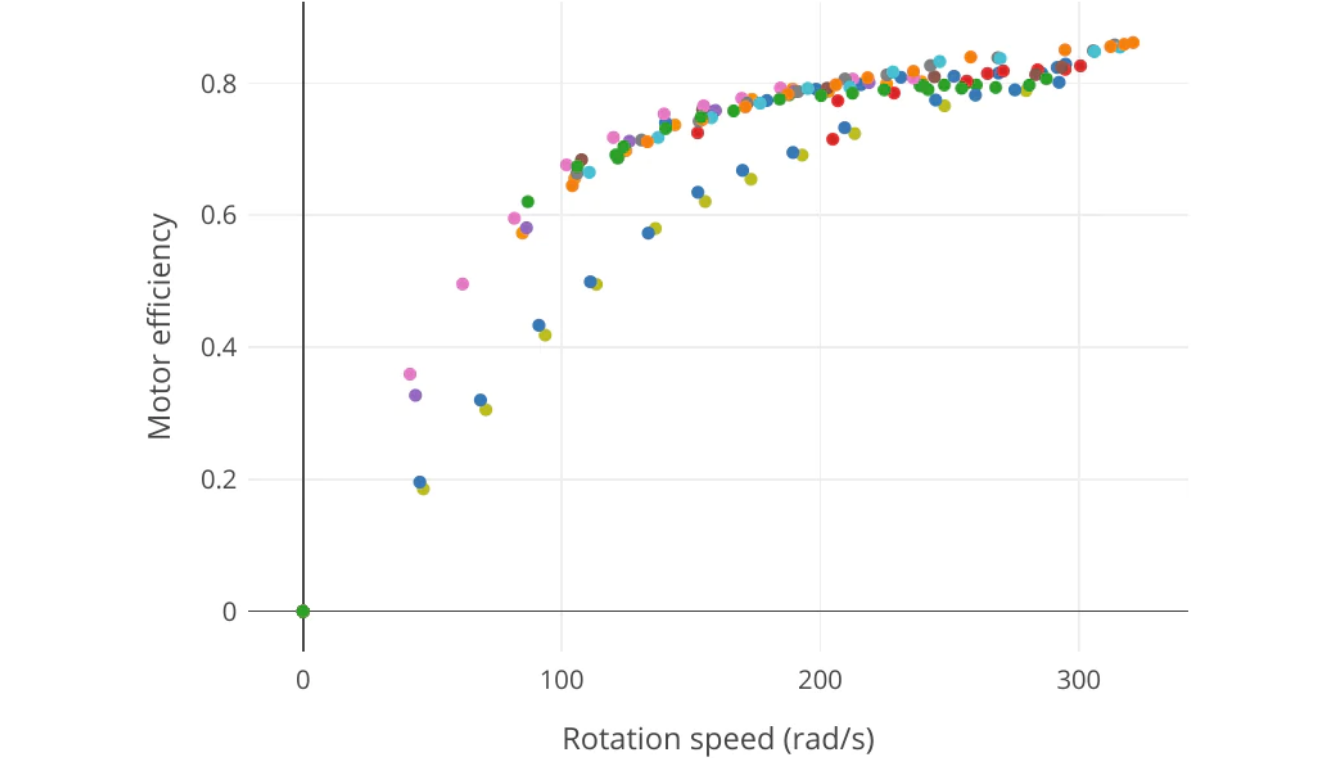

Plot motor efficiency as a function of RPM to select the best motor for a specific load
