Prop Testing Station with Wind Tunnel - Tyto Robotics

1. Series 1585 Propeller Test Stand

The Series 1585 measures propeller thrust and efficiency, in addition to torque, RPM, and power.

thrust stand for small brushless motors

Specifications

Max propeller diameter
16"
Max thrust
5 kgf
Max torque
2 Nm
Max voltage
50 V
Max current (continuous)
55 A
Sampling rate
Up to 80 Hz

Download the Datasheet

2. 2 x 2 Windshaper

The 2 x 2 Windshaper has individually controlled fans that can generate diverse wind profiles.

small wind tunnel

Specifications

Wind wall dimensions
50 x 50 cm
# of fan units (wind pixels)
36
Max flow speed
16 m/s
Max flow speed with convergent
30 m/s
Max flow rate
3.8 m³/s
Max power consumption
5 kW

Download the Datasheet

Wind Flow Examples

uniform wind tunnel

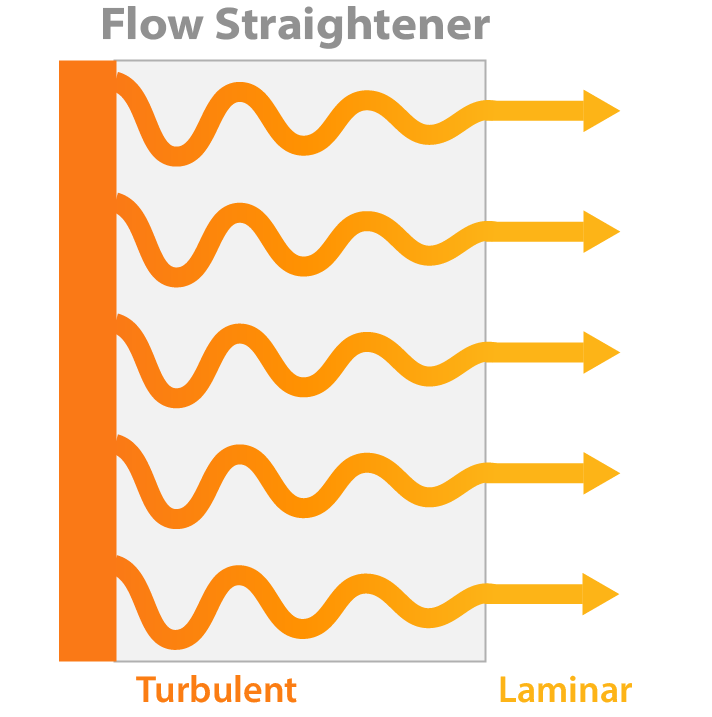

Steady Laminar Flow

Mimics the constant flow you would see in a traditional wind tunnel, which is great for evaluating aerodynamics.

turbulence wind tunnel

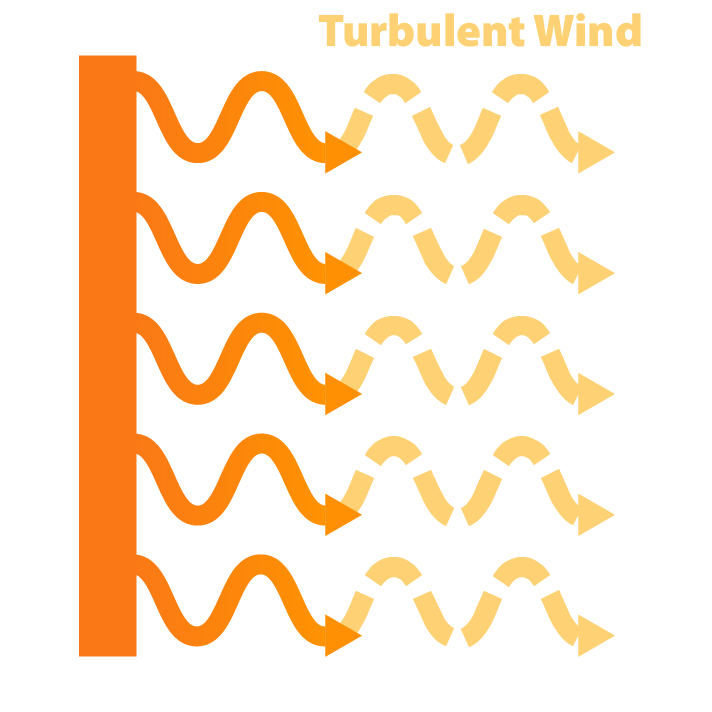

Turbulent Flow

Ideal for simulating the conditions an aircraft is likely to face in its work environment due to weather and topology.

wind tunnel shear effect

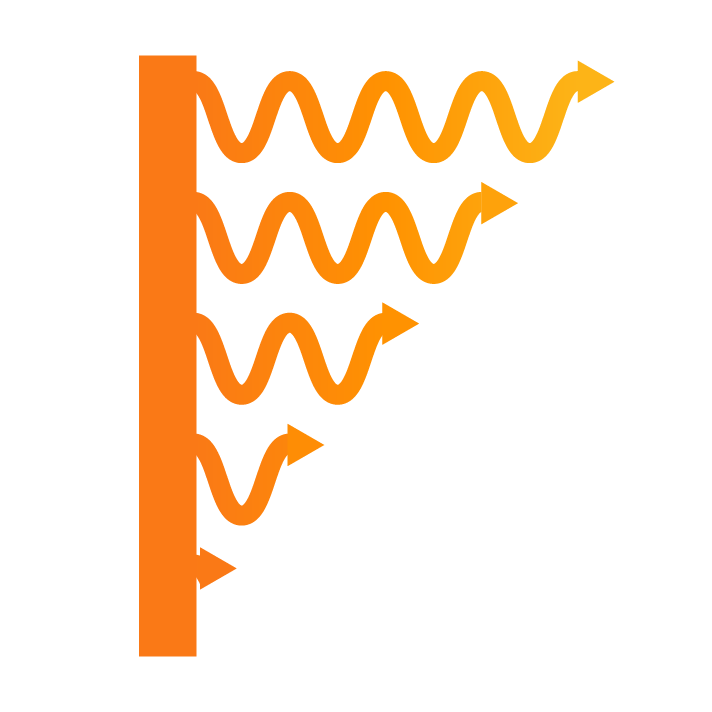

Shear Flow

Describes a wind profile where adjacent layers of fluids move parallel to each other at different speeds.

time variable wind tunnel

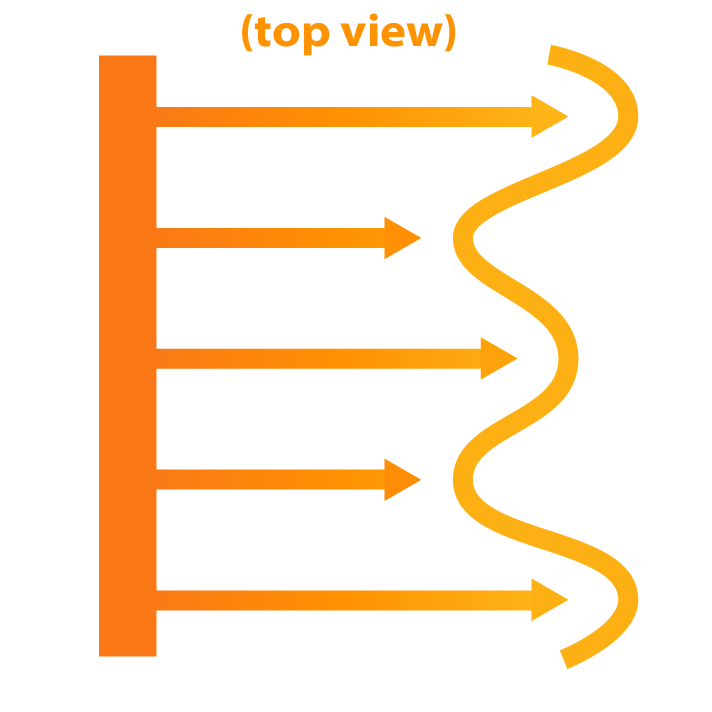

Time Variable Flow

Ideal for simulating the conditions an aircraft is likely to face in its work environment due to weather and topology.

wind tunnel gust effect

Wind Gust

Sudden changes in wind speed can be challenging for an aircraft to navigate. Gusts can be simulated by rapidly fluctuating the wind speed.

propeller thrust stand and wind tunnel

Get a Quote

Prop Testing Station
