Brushless Motor & Propeller Test Stands

Test your UAV propulsion system

Tyto Robotics offers a range of thrust stands for testing brushless motors, propellers, ESCs and batteries for drones. Data is acquired via manual or automated tests, and viewable in real-time with our software.

  • Measured Data
  • Derived Data
  • Thrust
  • Mechanical power
  • Torque
  • Electrical power
  • Current
  • Propeller efficiency
  • Voltage
  • Motor and ESC efficiency
  • RPM
  • System efficiency

Get a Quote:


By submitting the form you will be subscribed to our newsletter.

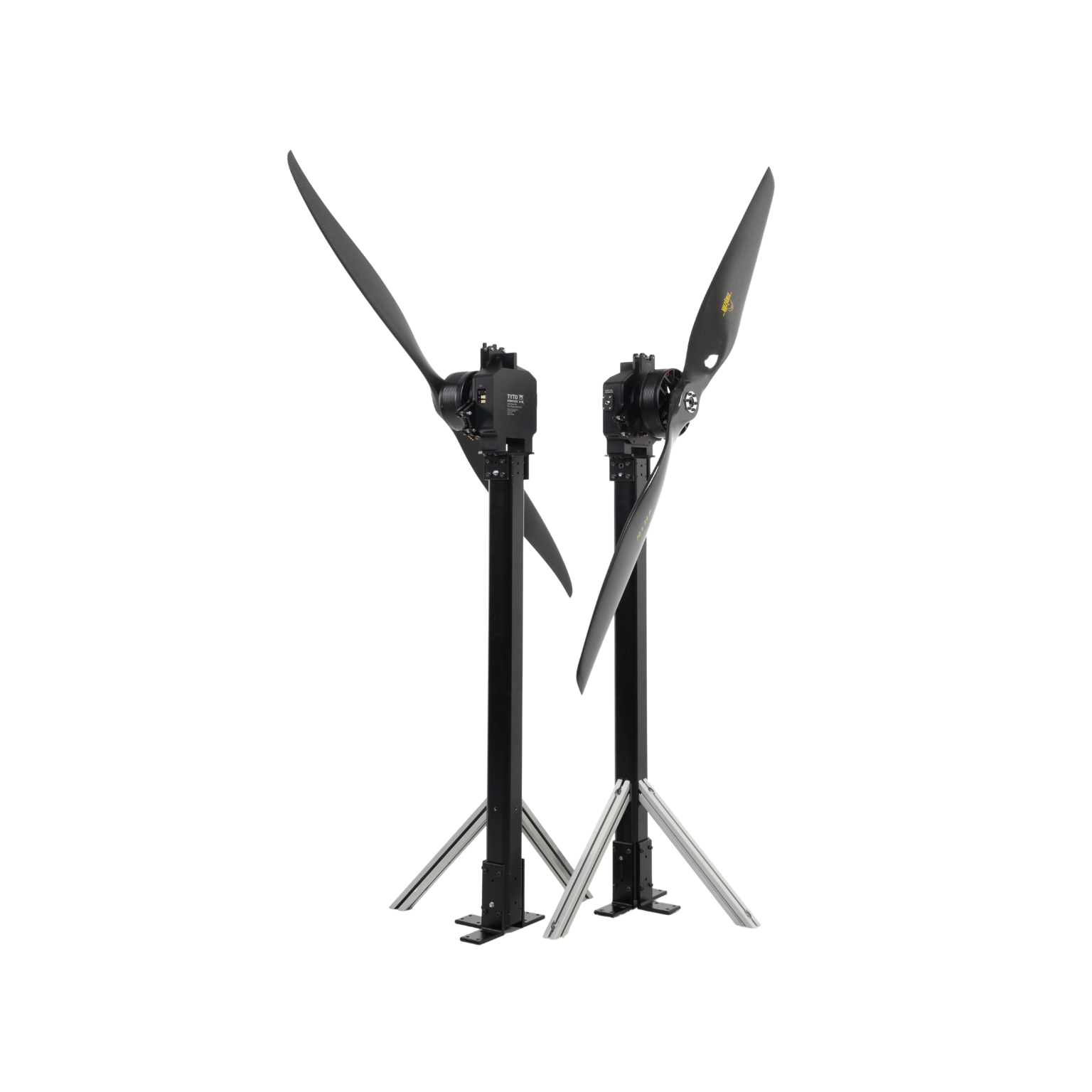

Flight Stand

Flight Stand

The Flight Stand comes in 3 sizes: 15 kgf, 50 kgf and 150 kgf. It has a 1,000 Hz sampling rate for real-time dynamic testing with super high accuracy. Single motor or coaxial.

  • Flight Stand 15
  • Flight stand 50
  • Flight Stand 150
  • Thrust
  • 15 kgf
  • 50 kgf
  • 150 kgf
  • Torque
  • 8 Nm
  • 30 Nm
  • 150 Nmv
  • Voltage
  • 180 V
  • 180 V
  • 180 V
  • Current
  • 150 A
  • 300 A
  • 500 A
  • Prop diameter
  • 12 - 40"
  • 20 - 50"
  • 2 meters +

Series 1780 Single Motor

The Series 1780 thrust stand single-motor allows you to measure up to 75 kgf of thrust and 48 Nm of torque for a single motor-propeller system.

  • Thrust Rating
  • Torque Rating
  • Electrical Power Rating
  • 25 kgf
  • 12 Nm
  • 60 V/ 100 A
  • 40 kgf
  • 18 Nm
  • 60 V/ 150 A
  • 75 kgf
  • 48 Nm
  • 100 V/ 500 A

Series 1780 Coaxial

The Series 1780 Coaxial allows you to measure up to 150 kgf of thrust and 96 Nm of torque produced by a two-propeller system.

  • Thrust Rating
  • Torque Rating
  • Electrical Power Rating
  • 50 kgf
  • 24 Nm
  • 60 V/ 100 A
  • 80 kgf
  • 36 Nm
  • 60 V/ 150 A
  • 150 kgf
  • 96 Nm
  • 100 V/ 500 A

Series 1520 and Series 1580

The Series 1520 and Series 1580 thrust stands allow you to measure up to 5 kgf of thrust and 2 Nm of torque.

  • Series 1520
  • Series 1580
  • 5 kgf of thrust
  • 5 kgf of thrust
  • No torque measurement
  • 2 Nm of torque
  • 35 V
  • 50 V
